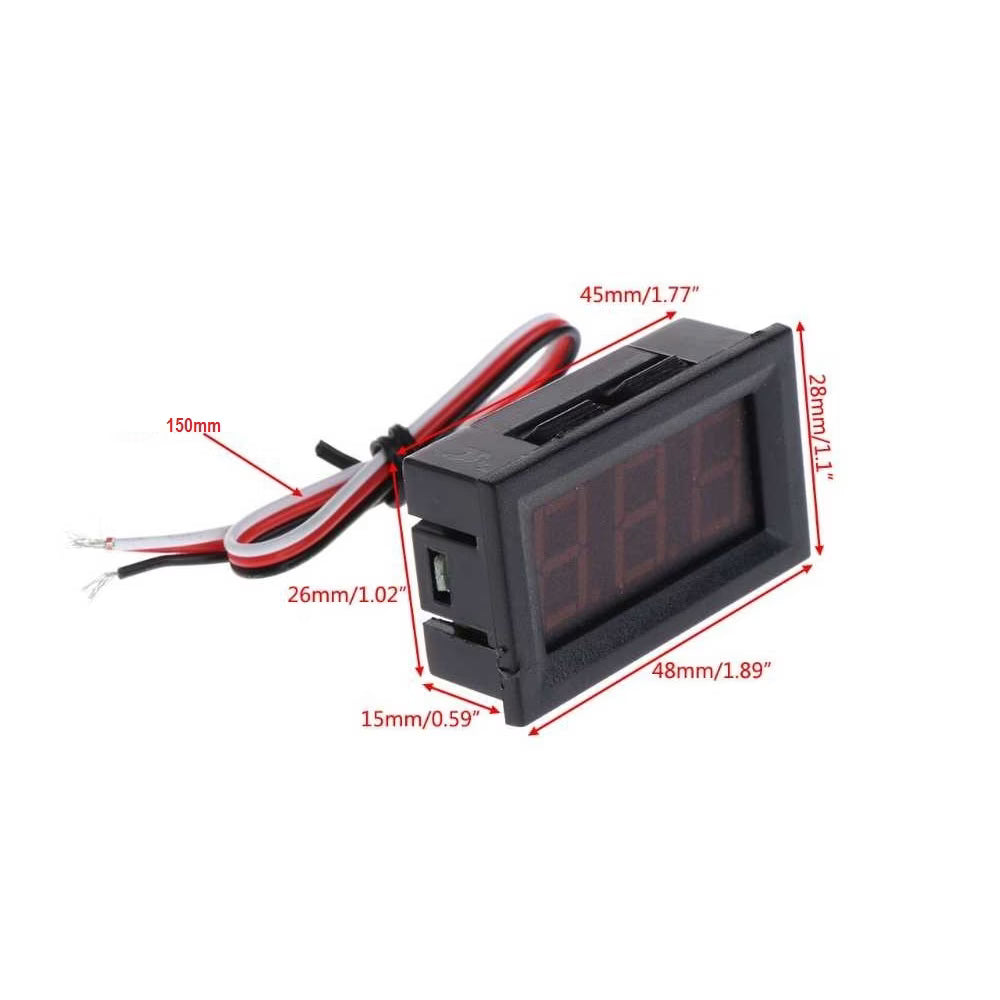

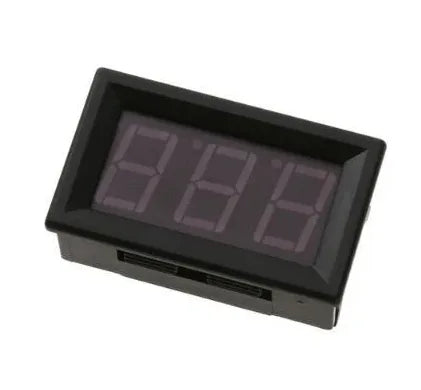

0.56inch 0-30V Three Wire DC Voltmeter Red

This compact DC voltmeter with an LED display is designed to measure voltages up to 30V. Its small size makes it easy to integrate into a wide range of projects. The voltmeter comes with three wires, predominantly red, for straightforward wiring. To measure voltages between 3.5V and 30V, simply connect the red and yellow wires together, allowing the measured voltage to power the device. Factory-calibrated for accuracy, the voltmeter ensures reliable readings, though the potentiometer on the back can be adjusted clockwise for fine-tuning the displayed voltage.

Specification:

• DC Voltmeter: 0-30V.
• Power supply: DC4-30V
• Measuring range: 0-30V.
• Measurement accuracy: ±0.1%
• Refresh rate: about 200ms
• Display: 0.36 “digital tube
• Color: Red
• Operating current: Less than 8mA
• Operating temperature: -10°C to 65°C
• Input impedance: 100K
• Display LED color – Red

PACKAGE INCLUDES

1 X 0.56inch 0-30V Three Wire DC Voltmeter Red
