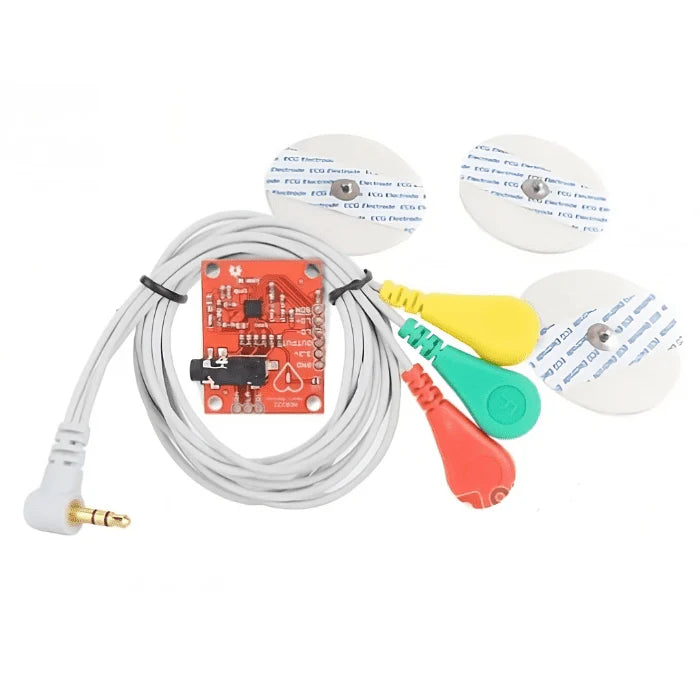

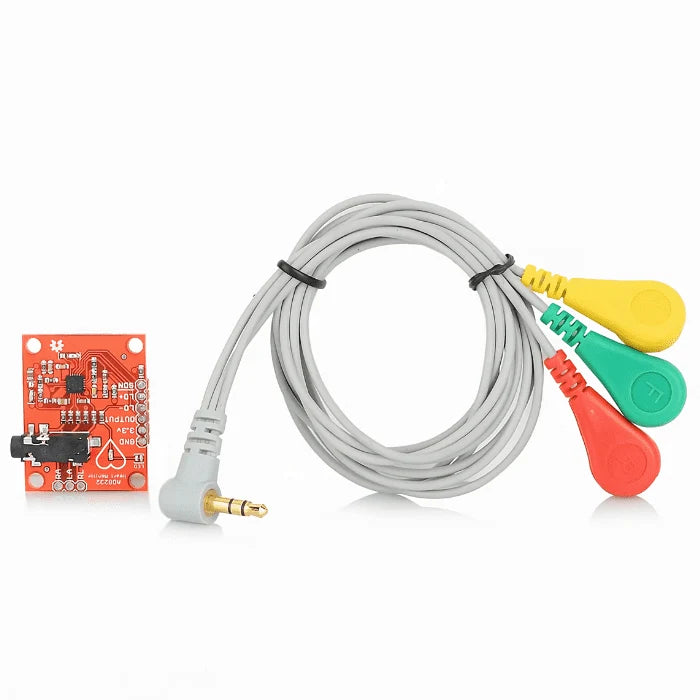

AD8232 ECG Module Heart Rate Monitor Kit

AD8232 ECG Module Heart Rate Monitor Kit

Rs. 975.00
Rs. 975.00
Sale Sold out
All taxes included. Shipping calculated at checkout.
  • Single lead heart rate monitor
  • Temperature range: 0 to 70°C, operating: -40 to +85°C
  • Operates at 3.3V
  • 3.5mm jack for biomedical pads
  • Filters small biopotential signals in noisy conditions
  • Measures heart signals and displays ECG
  • Improves clarity in noisy readings, simplifies PR and QT intervals
  • Specialized circuitry for accurate signal amplification and filtering
  • Nine connections for easy integration with Arduino

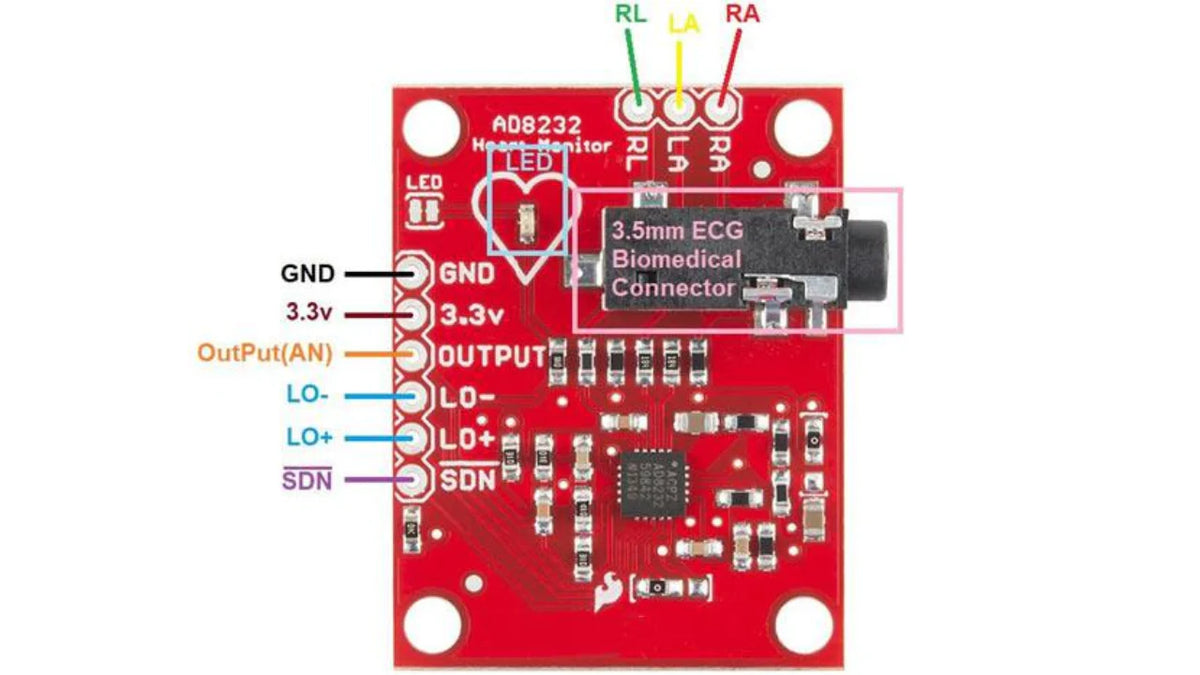

  • Essential pins: SDN, LO+, LO-, OUTPUT, 3.3V, GND
  • Custom sensors can connect via RA, LA, and RL pins
  • LED indicator pulses with your heartbeat

  • Electrode Placement:

    • RA → Right Arm
    • LA → Left Arm
    • RL → Right Leg

ZN107B
