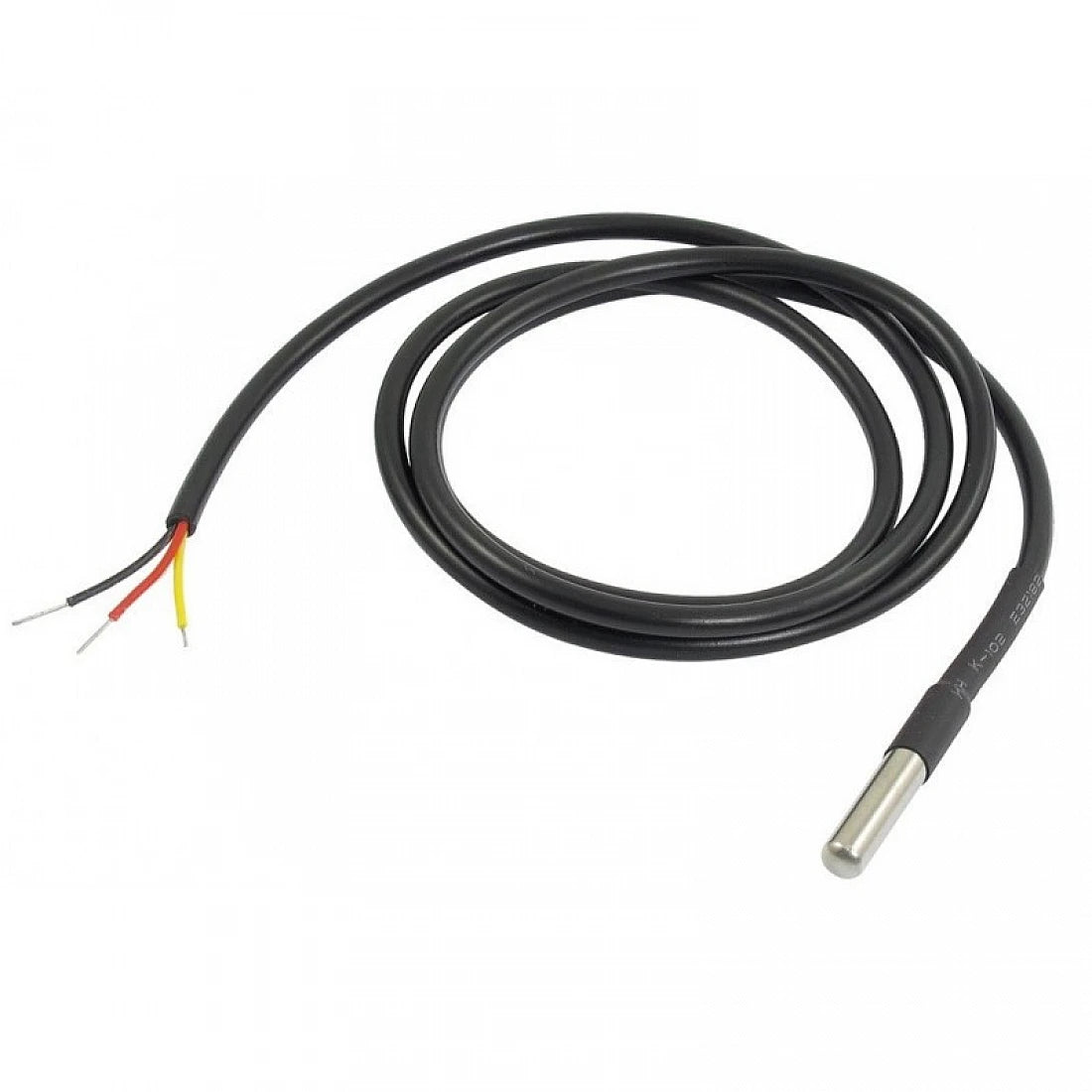

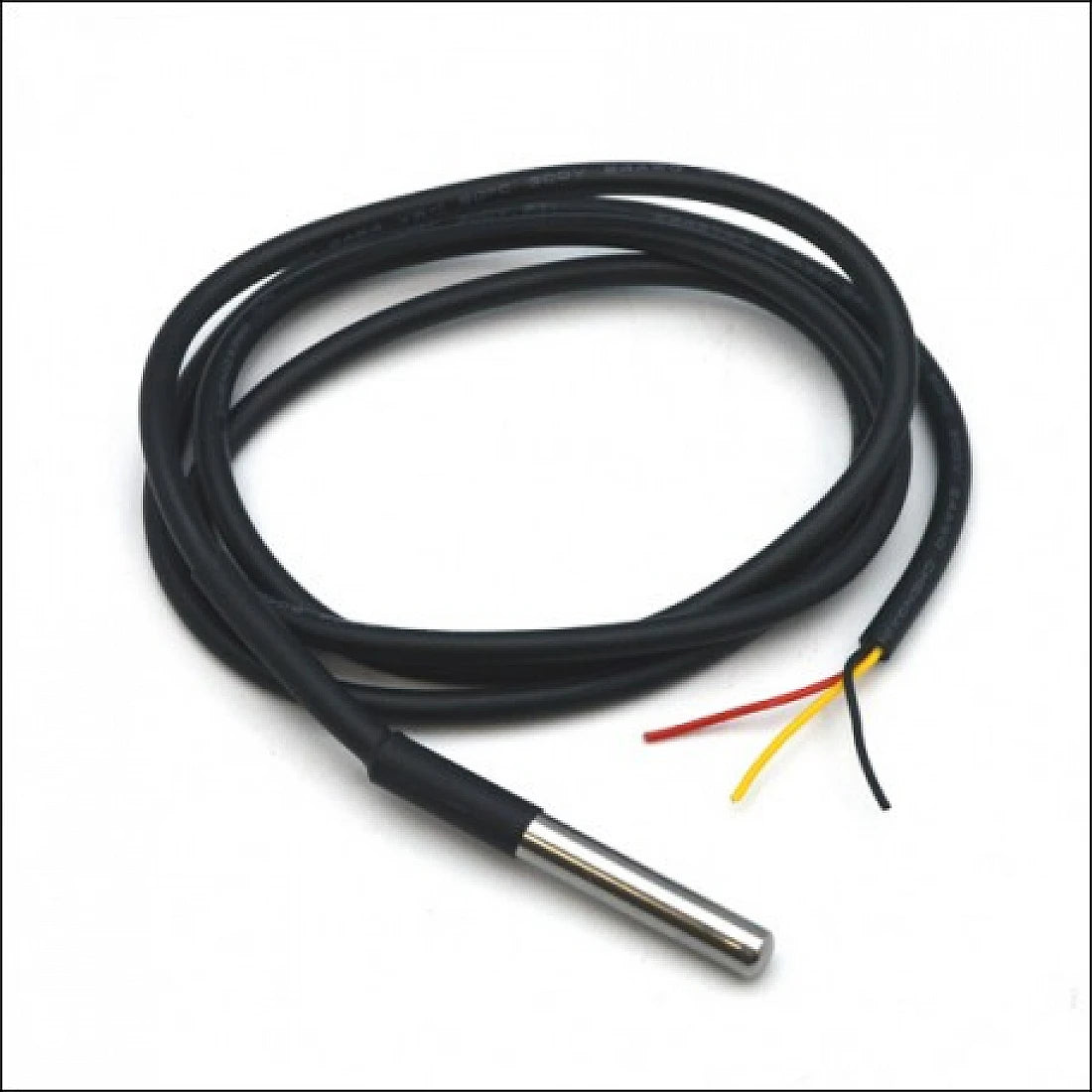

DS18B20 Waterproof Digital Temperature Sensor cable is very useful to measure temperature far away or in wet conditions. While the sensor is good up to 125°C the cable is jacketed in PVC so we suggest keeping it under 100°C.
They work great with any microcontroller using a single digital pin, and you can even connect multiple ones to the same pin, each one has a unique 64-bit ID burned in at the factory to differentiate them.
It is used in agricultural equipment, audio equipment, automotive climate control, GPS Devices, Hard Disk Drive, Medical Equipment, Set-Top Boxes, Telecommunications.
Cable specifications:
Contains DS18B20 temperature sensor
The cable is 1 Meter long and 4mm in diameter

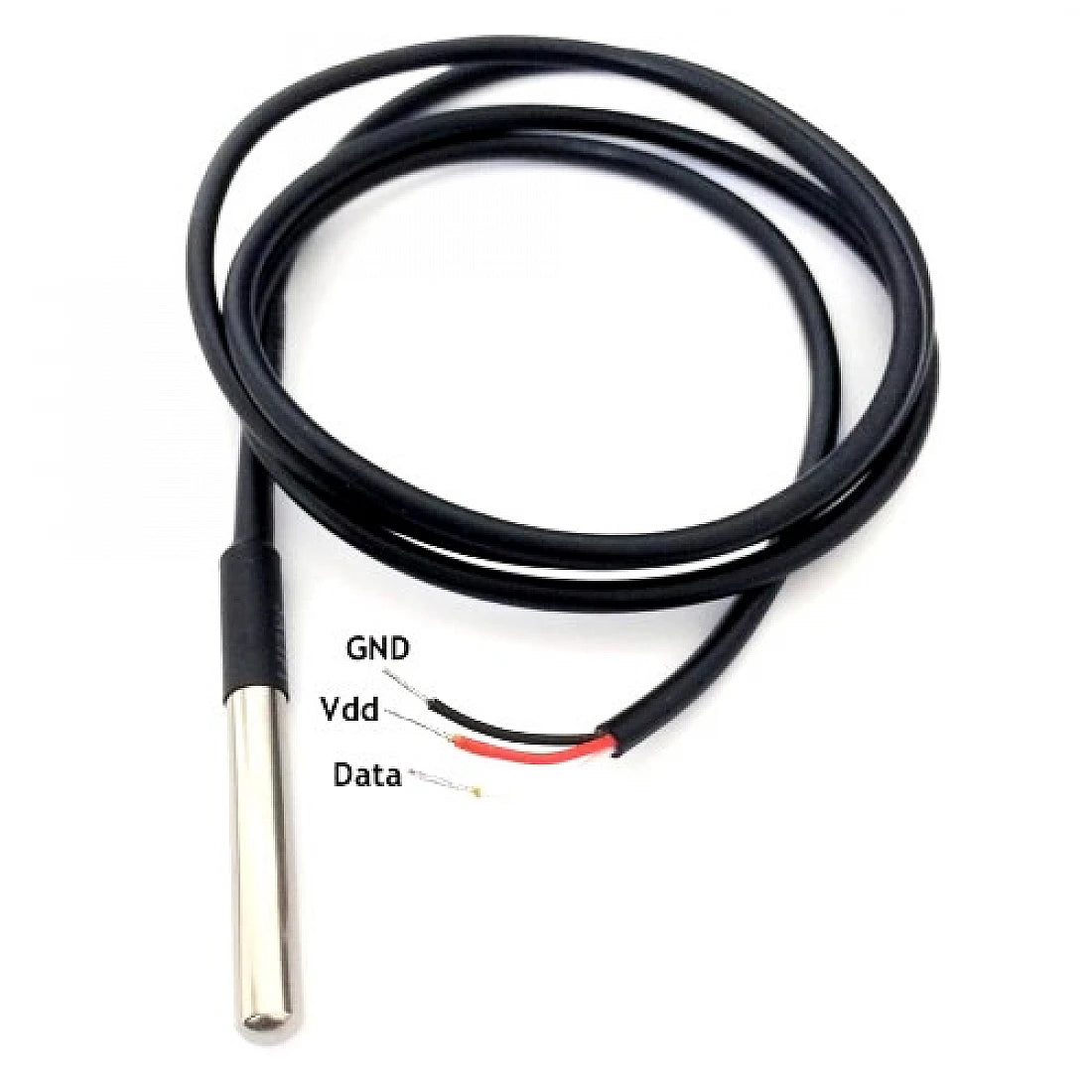

The sensor has three wires - Red connects to 3-5V, Blue/Black connects to ground and Yellow/White is data
Stainless steel tube 6mm diameter by 30mm long
Features :
Temperature limit alarm system
Multiple sensors can share one pin
Usable temperature range: -55 to 125°C
9 to 12-bit selectable resolution
±0.5°C Accuracy from -10°C to +85°C
Unique 64 bit ID burned into the chip
Uses 1Wire interface requires only one digital pin for communication
