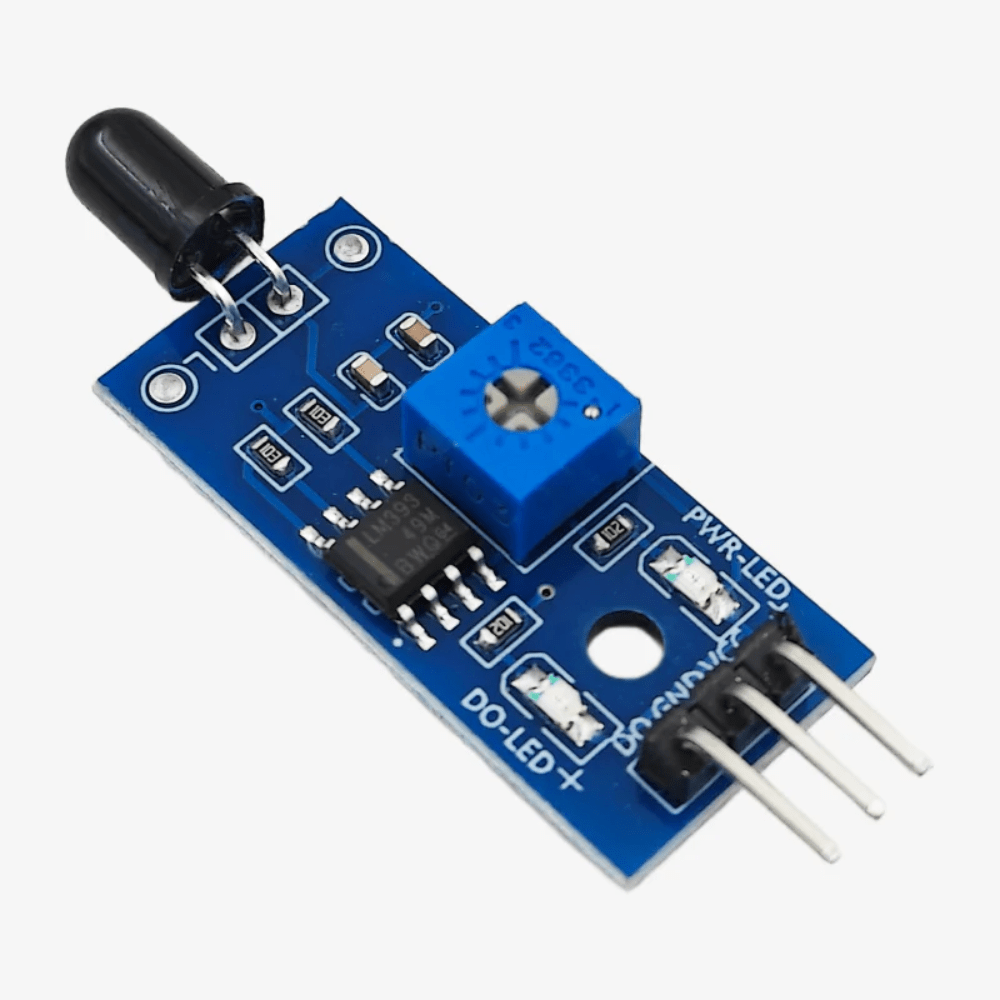

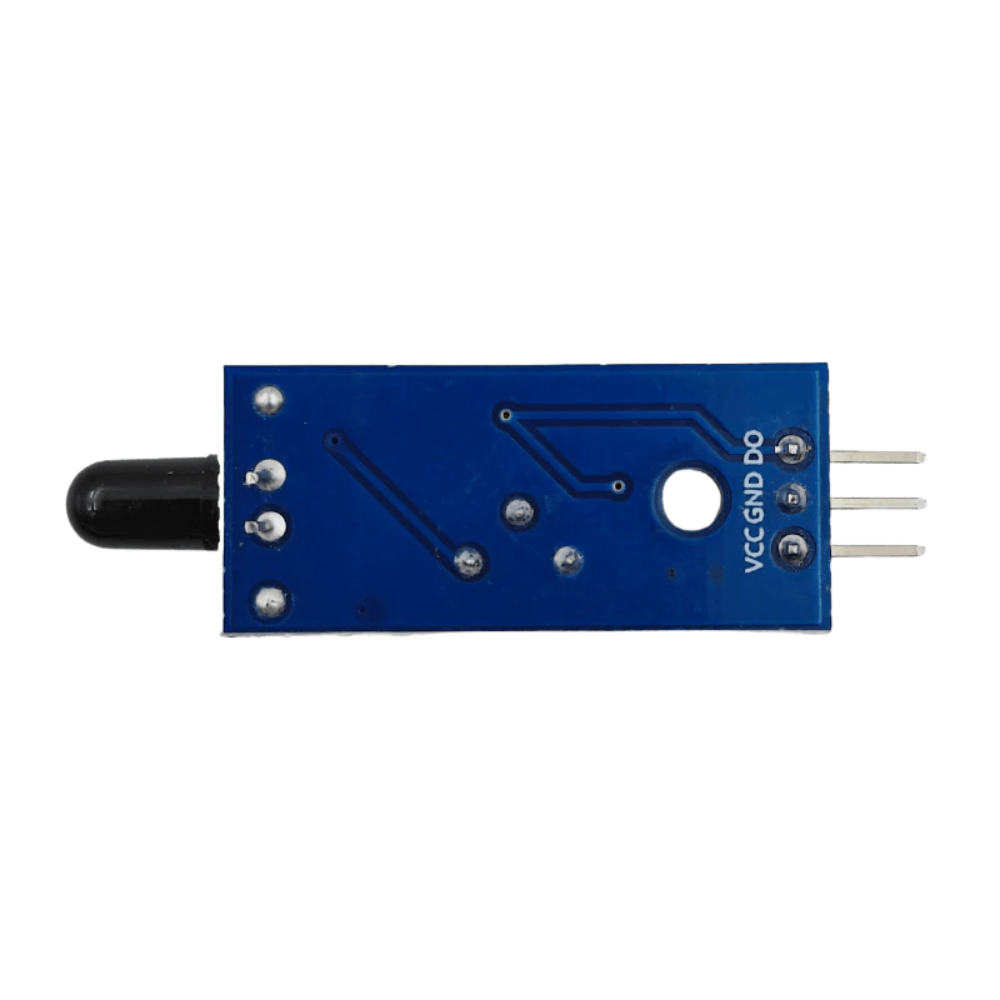

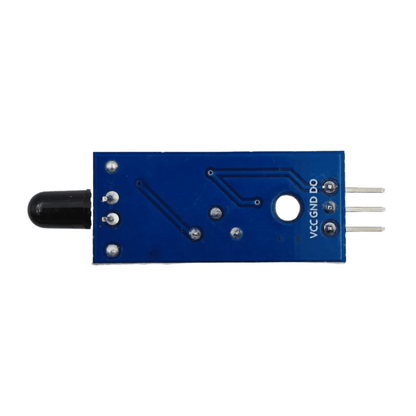

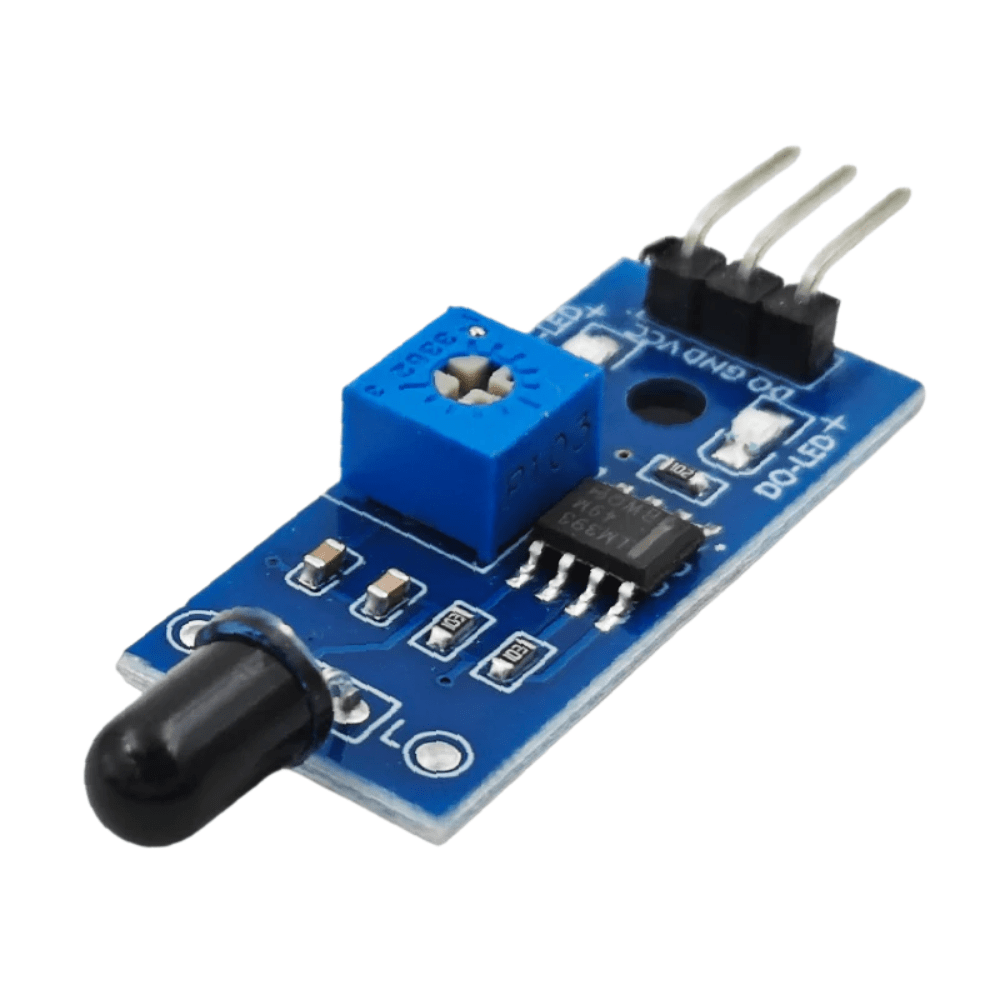

IR Flame/FIRE Sensor Module

IR Flame/FIRE Sensor Module

Rs. 36.00
Rs. 36.00
Sale Sold out
All taxes included. Shipping calculated at checkout.
  • Detects a flame or a light source of a wavelength in the range of 760nm-1100 nm
  • Detection distance: 20cm (4.8V) ~ 100cm (1V)
  • Detection angle about 60 degrees, it is sensitive to the flame spectrum.
  • Comparator chip LM393 makes module readings stable.
  •  Adjustable detection range.
  • Operating voltage 3.3V-5V
  • Digital and Analog Output
  • DO digital switch outputs (0 and 1)
  •  Power indicator and digital switch output indicator

ZN205B
