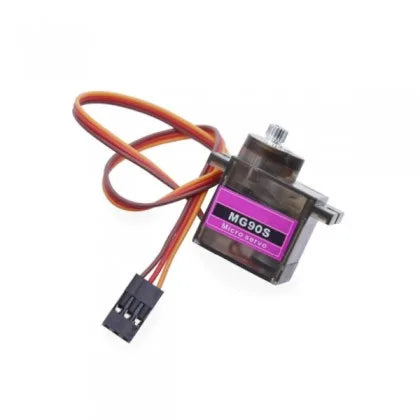

MG90S 9g Servo Motor Metal Gear 180 degrees

This low-cost, micro-sized metal gear RC servo provides a holding torque of 1.80kg.cm at 4.8V, making it perfect for student robotic projects involving arms or linkages. The main advantage of an RC servo over a DC brush motor is its precise control over the rotation angle.

Specification:

• Compatible with Arduino Servo library.
• Metal gears
• Operating Voltage: 4.8 – 6VDC
• Speed at 4.80V(no load): 0.1 s/60°
• Torque at 4.80V : 1.8 kg.cm (~0.1765 N.m)

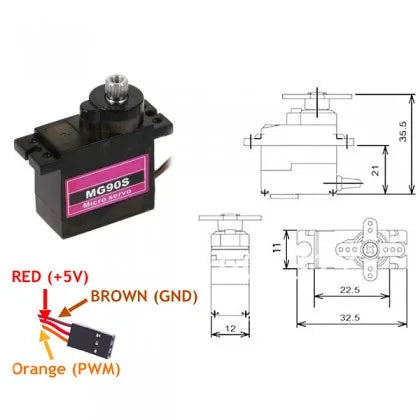

• Size: 32.5 x 12 x 35.5 mm (LxWxH)
• Weight: 16g
• Rotation angle: 180 degree
• Wiring:
  • Brown = GND
  • RED = 5V
  • Orange = Signal

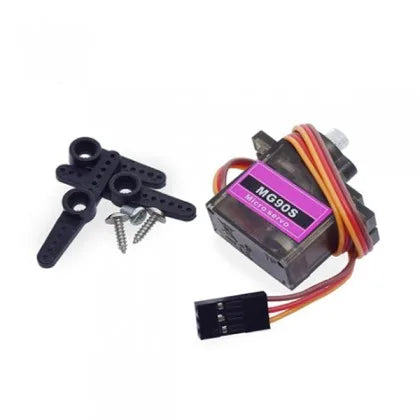

 Packing list:

• 1x MG90S 9g Servo Metal Gear 180 degrees
