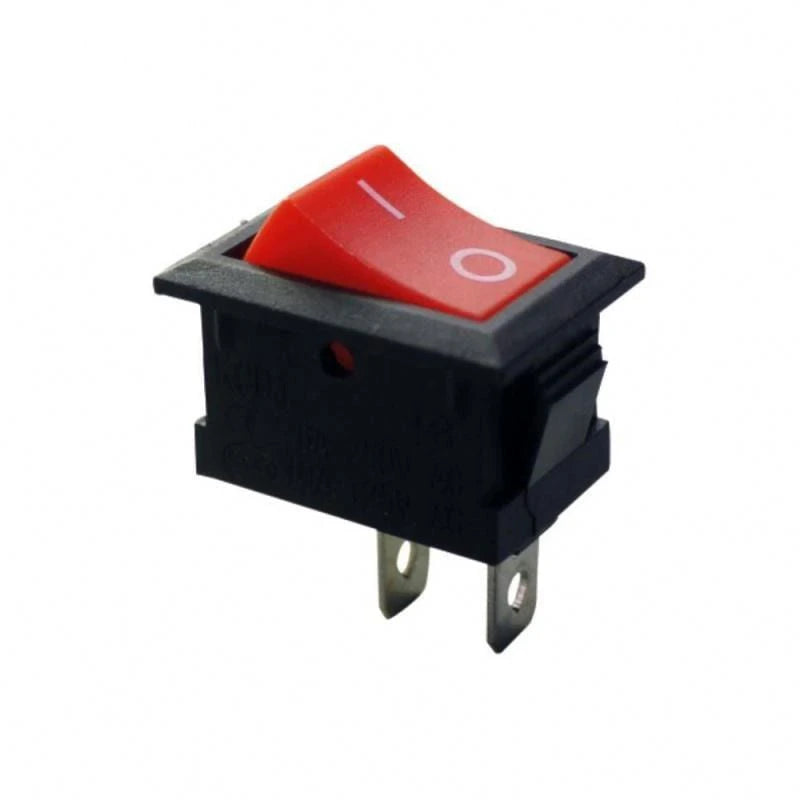

Mini Rocker Switch Red Button Black Housing 2 Pin KCD1-101

Mini Rocker Switch Red Button Black Housing 2 Pin KCD1-101

Rs. 8.76
Rs. 8.76
Sale Sold out
All taxes included. Shipping calculated at checkout.

The KCD1-101 miniature rocker switch is a SPST switch with ON-OFF operation, designed for various electrical applications. It has a durable nylon 66 housing and button, with brass terminals that are silver plated. The switch is rated at 10A 125VAC/6A 250VAC and has a contact resistance of 35mOhm max. It can operate in temperatures ranging from -25C to +85C and has a mechanical life of >= 100,000 cycles. The switch is available in black and red or white and beige button colors, and has CE, CQC, and SGS certifications. This switch is ideal for OEM or ODM applications.

Features
Category: Miniature Rocker Switch
Housing: Nylon 66
Button: Nylon 66
Terminal: Brass with silver plating
Button color: Black and Red, white and beige color
Housing color: Standard black and red, white and beige color
Rating: 10A 125VAC/6A 250VAC
Contact Configuration: SPST
Switch Operation: ON-OFF
Contact Resistance: 35mOhm max
Operating Temperature: -25C~+85C
Insulation Resistance: 100mOhm min (500VDC)
Dielectric Strength: 1500VAC 1 minute
Mechanical Life: >= 100,000 Cycles
Certification: CE, CQC, SGS
Techincal Datasheet

Download or view the official manufacturer technical specifications, pinout diagrams, and datasheets for this component:

View Technical Datasheet (PDF)
