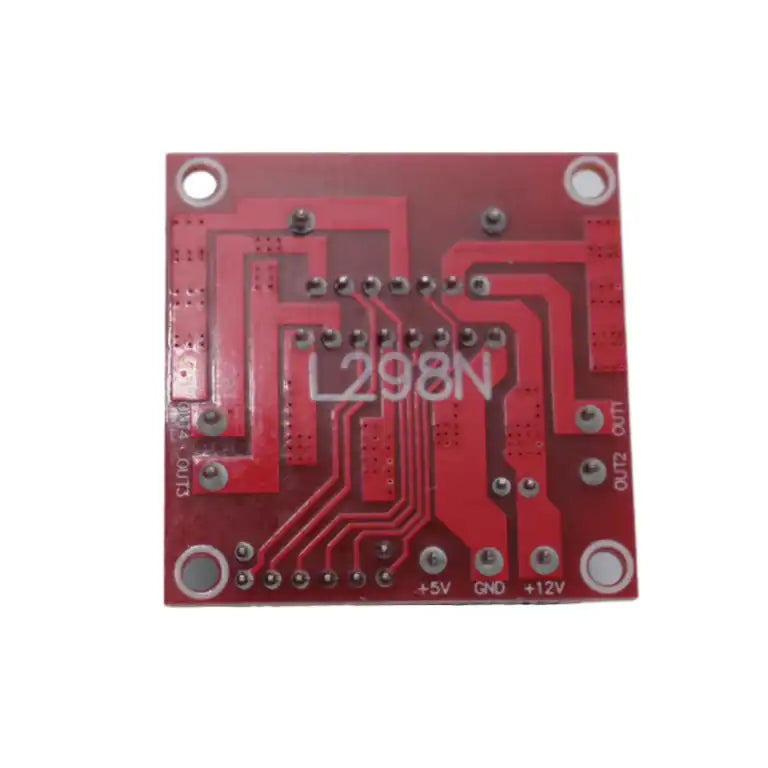

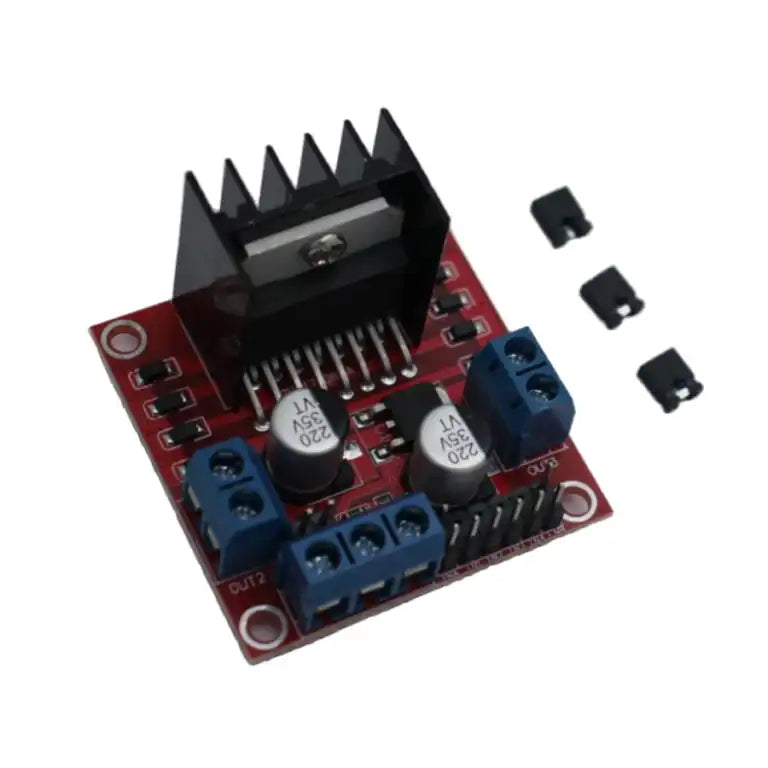

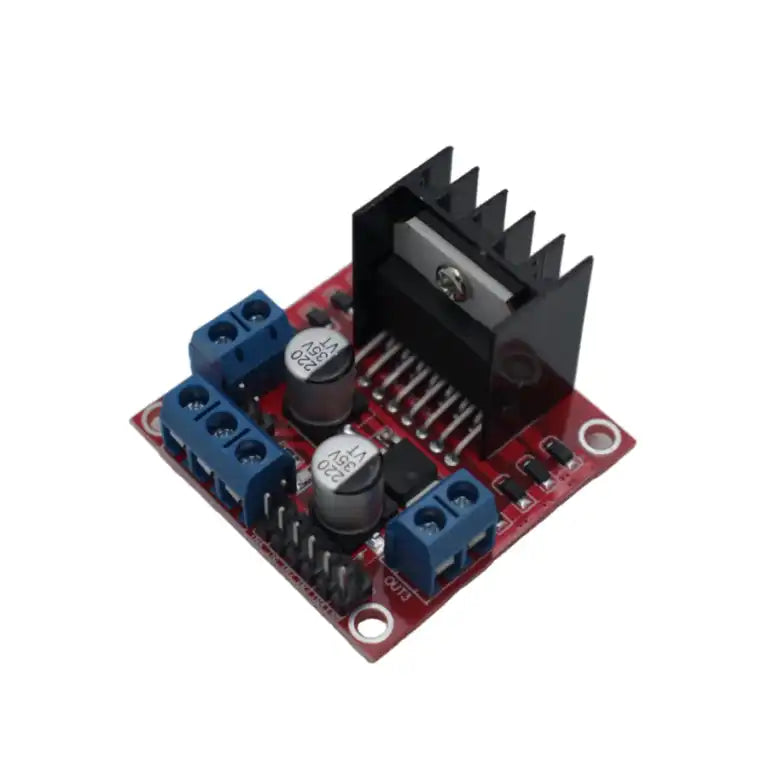

Motor Driver Module (L298N)

The L98 Motor Driver Board is a high voltage, high current dual full-bridge driver designed to accept standard TTL logic levels and drive inductive loads such as relays, solenoids, DC and stepper motors. Two enable inputs are provided to enable or disable the device independently of the input signals. An additional supply input is provided so that the logic works at the lower level.

This motor driver is perfect for robotics and mechatronics projects and ideal for controlling motors from microcontrollers, switches, relays, etc. It is perfect for driving DC and Stepper motors for applications such as micro mouse, line following robots, robot arms, and more.

Features:

• High Voltage and Current:
  • Operating supply voltage of up to 46V
  • Total DC current capacity of up to 4A (2A per channel)
• Versatile Compatibility:
  • Accepts standard TTL logic levels
  • Suitable for driving a variety of inductive loads, including relays, solenoids, DC motors, and stepper motors
• Enable Inputs:
  • Two enable inputs for independent control of device activation
  • Allows for flexible operation and efficient power management
• Low Saturation Voltage:
  • Ensures minimal voltage drop and efficient power delivery, enhancing performance and reliability
• Over Temperature Protection:
• • Safeguards the module and connected components from damage due to excessive heat
• PTR Connector:
  • Equipped with a PTR connector for easy and secure connection, simplifying installation and setup

Specifications:

• Operating Supply Voltage: Up to 46V
• Total DC Current: Up to 4A (2A per channel)
• Logical Voltage: 5V
• Drive Voltage: 5V–35V
• Logical Current: 0–36mA
• Drive Current: 2A (max. single bridge)
• Max Power: 25W
• Dimensions: 44 × 44 × 28 mm (L × W × H)
