ZEETRON

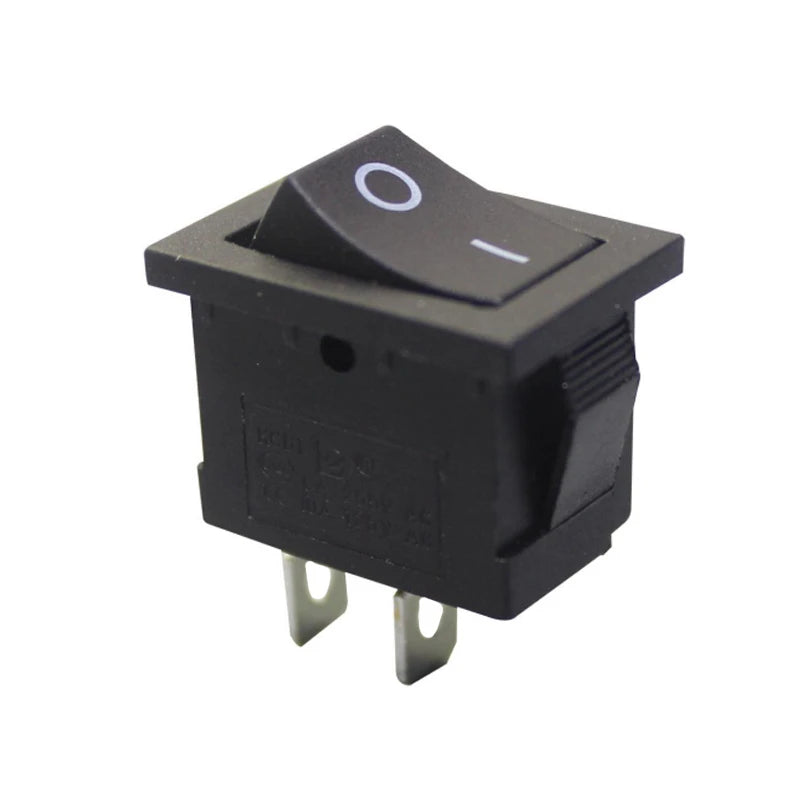

Rocker Switch ON-OFF SPST 2Pin

Rocker Switch ON-OFF SPST 2Pin

Rs. 0.00
Rs. 0.00
Sale Sold out
All taxes included. Shipping calculated at checkout.
Features
  • Rating: 10A 125VAC/6A 250VAC
  • Contact Configuration: SPST
  • Switch Operation: ON-OFF
  • Contact Resistance: 35mOhm max
  • Insulation Resistance: 100mOhm min (500VDC)
  • Dielectric strength: 1500VAC 1 minute
  • Mechanical Life: >= 100,000 Cycles
  • Electrical Life: >= 10,000 Cycles
  • Housing: Nylon 66
  • Housing Color: Standard Black
  • Button: Nylon 66
  • Button Color: Black, Red, or other Transparent Color
  • Terminal: Brass with Silver Plating
  • Operating Temperature: -25C~+85C
  • Certification: CE, CQC, SGS
